Building Information Modelling

Building Information Modelling

3D Modelling of Buildings and Structures
Architectural BIM, Structural BIM, Mechanical, Electrical and Plumbing BIM
Implementation of project/client software templates and standards.
Conduct model audits to ensure compliance and report on outcomes.
Coordinate and manage project federated model(s) and linked drawing deliverables.

Represent BIM Team with tendering, proposals, and submissions.
Ensure spatial coordination and software interoperability.
Check models for overall health quality, consistency and general aesthetics.
Interface clash Detection in the 3D models.
Software: BIM 360, ACC, Revit, Navisworks, Civil 3D, AutoCAD, Synchro 4D, Rhino, ProjectWise, MicroStation.

BIM 1

BIM 2

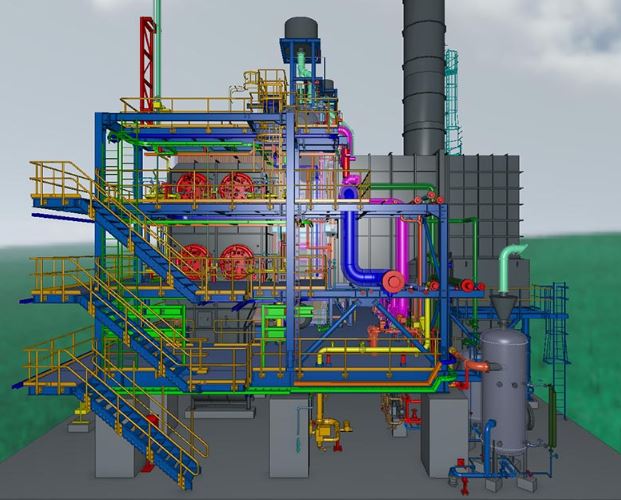

BIM 3

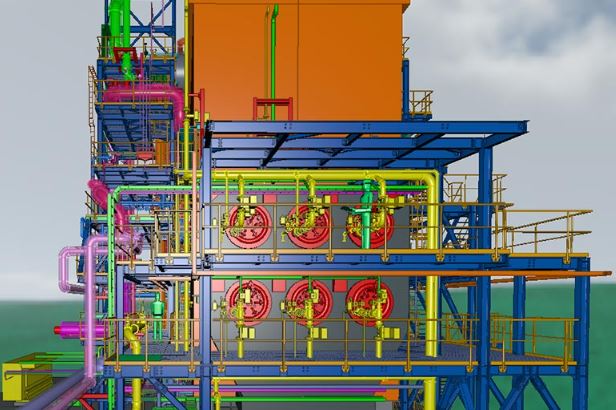

BIM 4

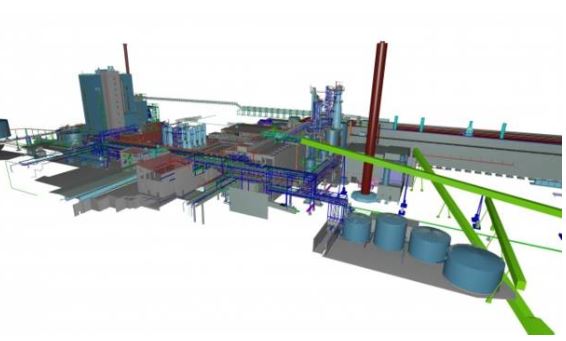

BIM 5

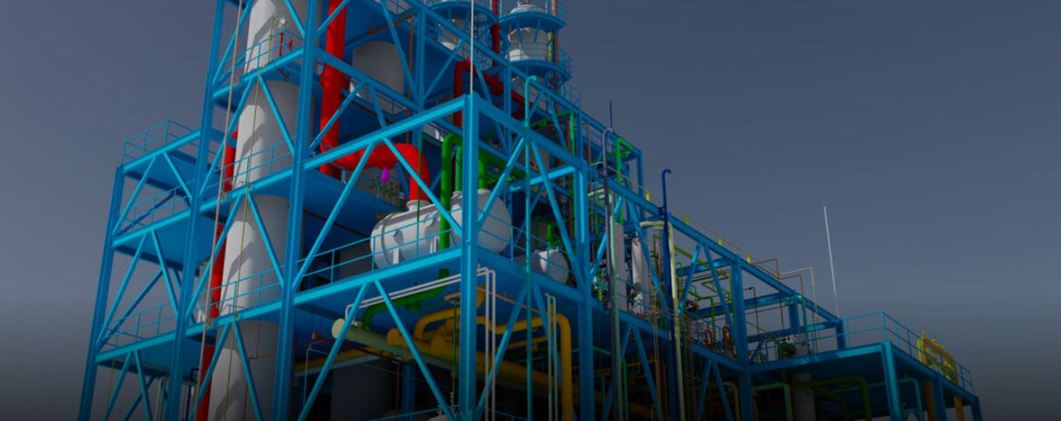

BIM 6

BIM 7

BIM 8
