Ship Structural Design and Detailing

Home
Services
Ship Structural Design and Detailing

Comprehensive Naval Architecture & Marine Structural Solutions

Design of Ship Hatch Cover

Structural design of ship hatch covers as per DNV standards, including lift-away hatch cover structures designed for 7,500 DWT vessels for cargo handling applications.

Design of Grain Bulk Head

Structural design and detailing of grain bulkheads for cargo ships in accordance with DNV codal standards, ensuring maximum structural integrity during transportation.

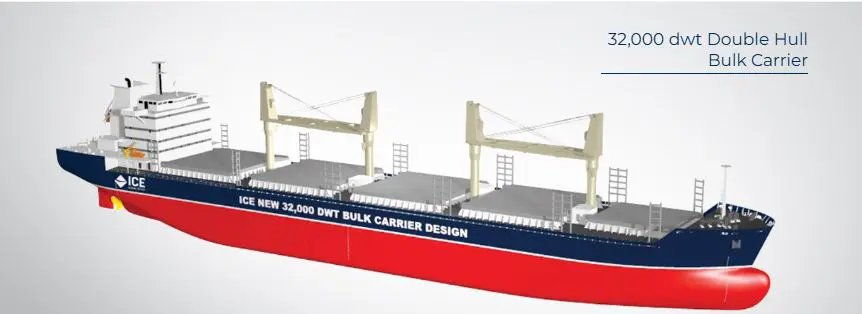

3D CAD model rendering of a red and blue 32,000 DWT bulk carrier vessel showing deck cargo cranes and hatch covers

Detailed internal cross-section 3D model of a ship hull highlighting bulkheads, engine rooms, and multi-level framing components

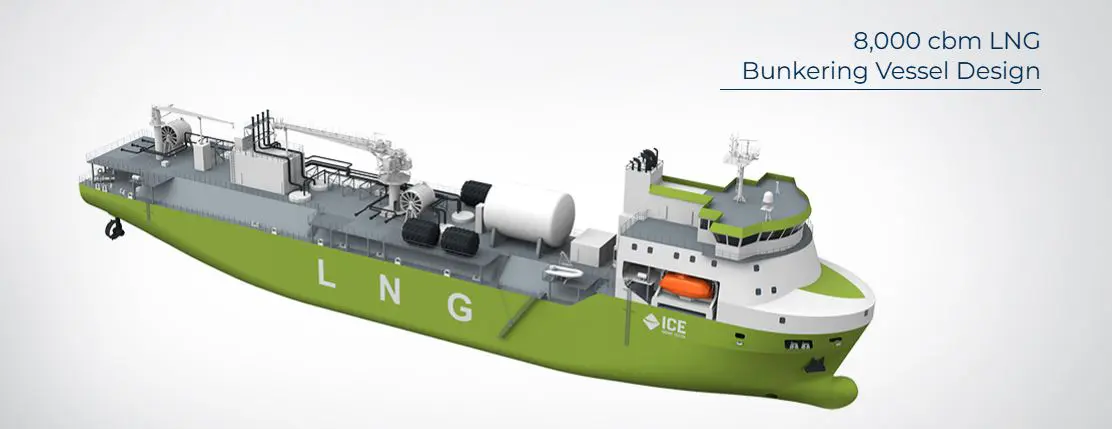

3D naval architecture rendering of a green and white 8,000 DWT LNG bunkering vessel showing deck tanks and bridge bridge structure

High-angle 3D CAD rendering of a large offshore floating production vessel featuring yellow deck cranes and a helipad

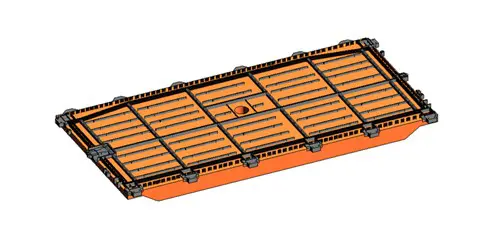

Perspective engineering view of an orange-painted steel grain bulkhead panel section with structural stiffeners for cargo integrity

Top-down flat engineering view of a fabricated orange rectangular marine steel bulkhead panel showing reinforcement layout

Marine Engineering Precision

Comprehensive Ship Structural Design and Precise Marine Detailing

Providing detailed structural analysis and shop drawings for naval projects, ensuring compliance with international maritime safety standards.

Get Technical Consultation
